经过昨天的披荆斩棘，顺利通过了react agent的测试，但是昨晚我又重新思考，即使是使用了jdbc的记忆，也不应该丢失信息呀，难道springai有缺陷？

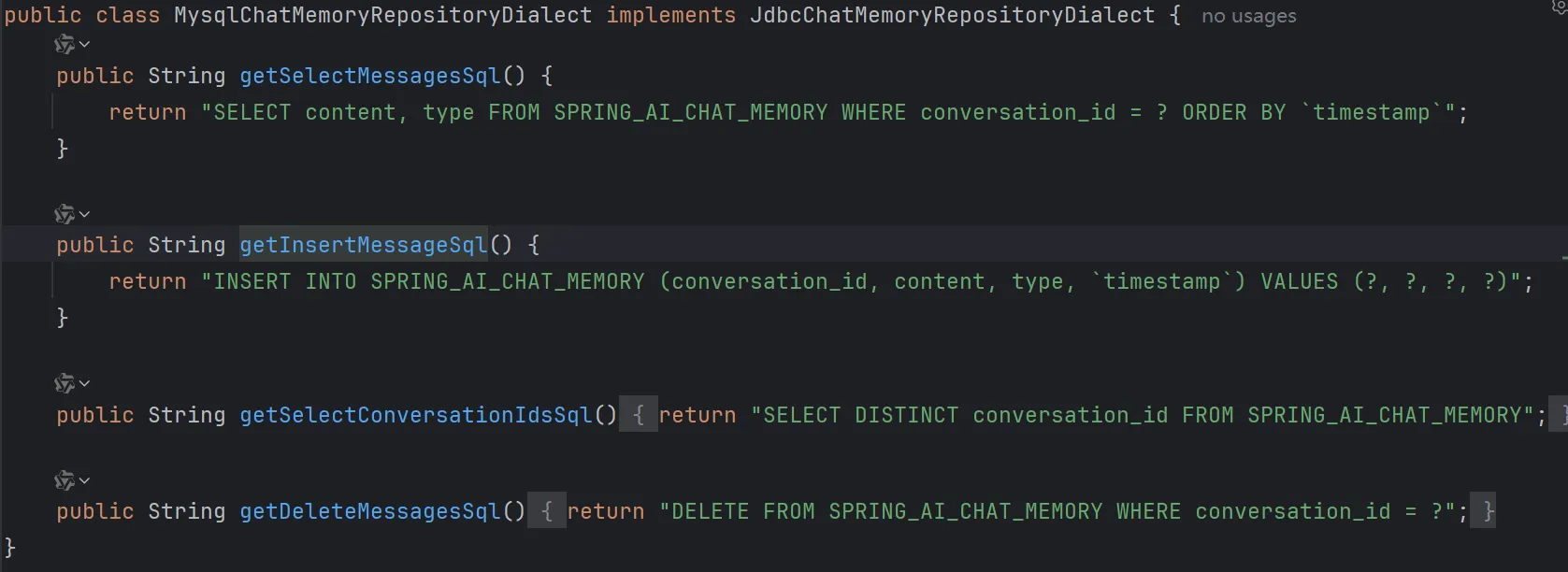

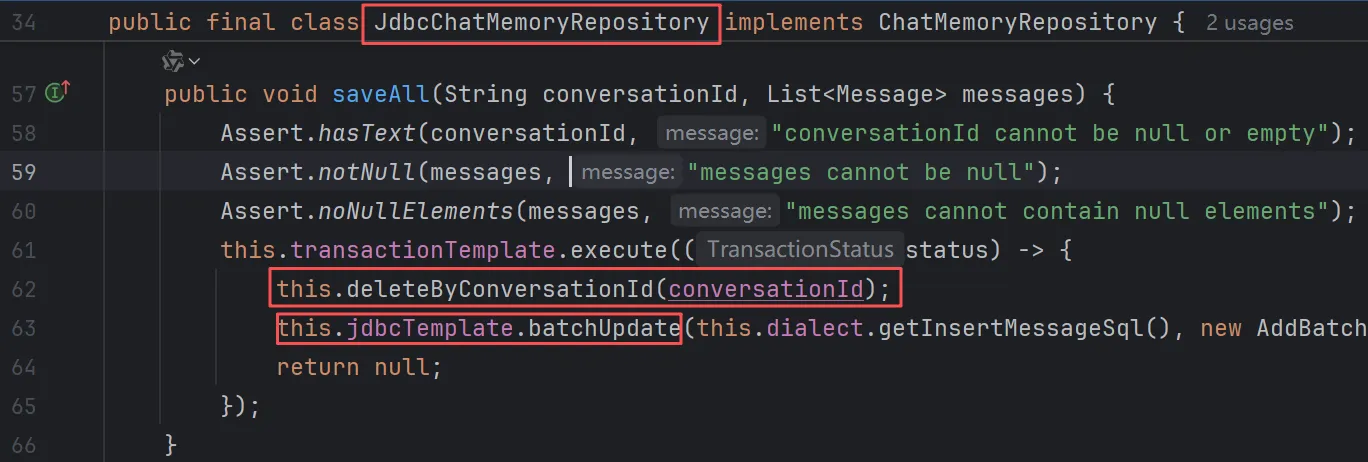

继续深入源码，发现springai的jdbcmemory的实现逻辑，有点“草率”，它是全量删除再批量插入，且仅支持他定义的几个字段，因为sql是硬编码。
看来jdbc丢数据的原因已经基本找到了，使用现有的功能是无法实现了，那么就只能重写。

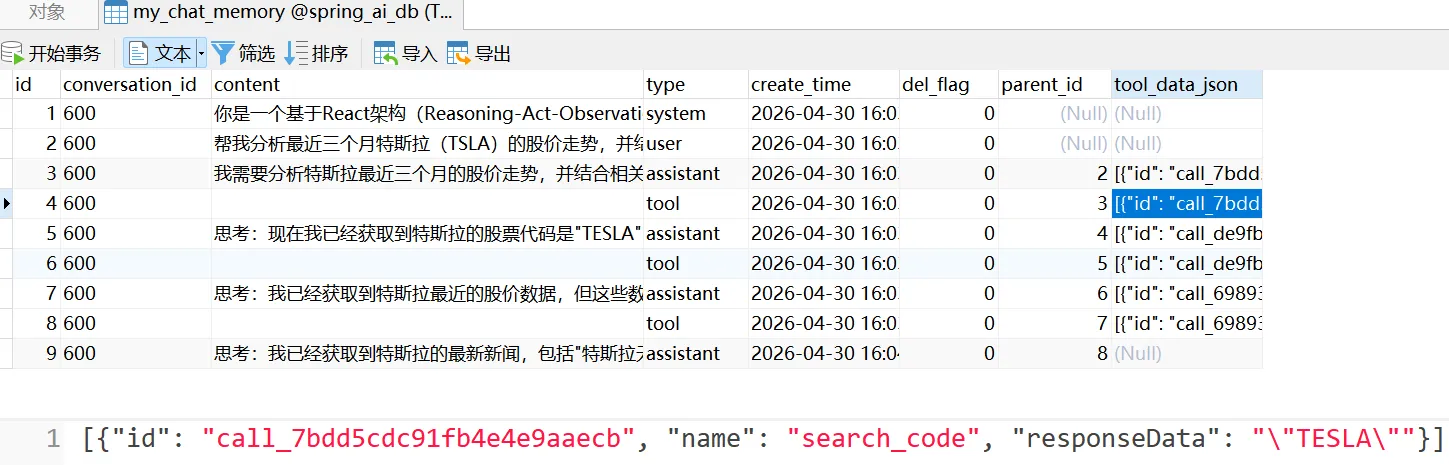

这里我们新建一套新表的数据库代码，并重写JdbcChatMemoryRepository和JdbcChatMemoryRepositoryDialect来实现自定义表字段以及持久化操作。
直接上代码吧，注释的已经很清楚了，新表的数据库代码就不做展示了，都是基于mybatisplus的。
@TableName(value ="my_chat_memory")
@Data
public class MyChatMemory implements Serializable {
@TableId(type = IdType.AUTO)
private Long id;
private String conversationId;//保留的Spring框架的会话Id字段
private String content;
private String type;
private Date createTime;
private Boolean delFlag;
private Long parentId;//该内容的上一条对话内容的id，对应的是id不是conversationId
private String toolDataJson;
@TableField(exist = false)
private static final long serialVersionUID = 1L;
}
===========================================================================
@Component
@Slf4j
public class MyJdbcChatMemoryRepository implements ChatMemoryRepository {
private final TransactionTemplate transactionTemplate;
private final MyChatMemoryMapper myChatMemoryMapper;
private final MyChatMemoryService myChatMemoryService;
/**
* 特性 1：绝对安全（Immutability）。加上了 final 关键字，意味着这个类一旦被实例化，
* 它的 Mapper 和 Service 就永远不可能被篡改，保证了线程安全。
* <p>
* 特性 2：脱离 Spring 也能活。如果你写单元测试，
* 你可以直接 new JdbcEnhanceChatMemoryRepository(mockJdbc, mockMapper, mockService, mockTx)，
* 不需要启动整个 Spring 容器就能测试。
* <p>
* 特性 3：强制依赖明确。它告诉所有人：“没有这四个参数，你连我这个对象都别想创建出来”。
*
* @param jdbcTemplate
* @param myChatMemoryMapper
* @param myChatMemoryService
* @param txManager
*/
private MyJdbcChatMemoryRepository(JdbcTemplate jdbcTemplate, @Autowired
MyChatMemoryMapper myChatMemoryMapper, @Autowired
MyChatMemoryService myChatMemoryService,
PlatformTransactionManager txManager) {
Assert.notNull(jdbcTemplate, "jdbcTemplate cannot be null");
this.transactionTemplate = new TransactionTemplate(
txManager != null ? txManager : new DataSourceTransactionManager(jdbcTemplate.getDataSource()));
this.myChatMemoryMapper = myChatMemoryMapper;
this.myChatMemoryService = myChatMemoryService;
}
@Override
public List<String> findConversationIds() {
return myChatMemoryMapper.selectList(new LambdaQueryWrapper<MyChatMemory>()
.eq(MyChatMemory::getDelFlag, 0)).stream().map(MyChatMemory::getConversationId).toList();
}
@Override
public List<Message> findByConversationId(String conversationId) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
List<MyChatMemory> myChatMemories = myChatMemoryMapper.selectList(new LambdaQueryWrapper<MyChatMemory>()
.eq(MyChatMemory::getConversationId, conversationId)
.eq(MyChatMemory::getDelFlag, 0)
.orderByAsc(MyChatMemory::getCreateTime));
// 将数据库里的数据转换成 Message 对象
return myChatMemories.stream()
.map(chatMemory -> {
String content = chatMemory.getContent();
MessageType type = MessageType.fromValue(chatMemory.getType());
String toolJson = chatMemory.getToolDataJson(); // 储存工具调用结果的关键
Message mes; // 声明一个接口变量
// 根据数据库里存的 type，去new不同的具体实现类
switch (type) {
case USER:
mes = new UserMessage(content);
break;
case SYSTEM:
mes = new SystemMessage(content);
break;
case ASSISTANT:
if (StringUtils.isNotBlank(toolJson)) {
// 如果有工具调用指令，反序列化后塞进去
List<AssistantMessage.ToolCall> calls = JSON.parseArray(toolJson, AssistantMessage.ToolCall.class);
mes = AssistantMessage.builder().content(content).toolCalls(calls).build();
} else {
mes = new AssistantMessage(content);
}
break;
case TOOL:
// 将存入的工具执行结果反序列化塞回去
List<ToolResponseMessage.ToolResponse> responses = JSON.parseArray(toolJson, ToolResponseMessage.ToolResponse.class);
mes = ToolResponseMessage.builder().responses(responses).build();
break;
default:
throw new IllegalArgumentException("未知的消息类型: " + type);
}
return mes;
}).toList();
}
/**
* 实现回话回退，通过子父节点实现，目前仅支持memory层面
* Advisor未做修改，需要修改before 方法，对话回退场景下，先插入当前对话，待数据库整理好新的父子逻辑，再查询
* 否则会出现已经组装好prompt，再插入并整理父子逻辑，造成本次对话无法实现回退，下次才生效
* @param conversationId
* @param messages
*/
@Override
public void saveAll(String conversationId, List<Message> messages) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
Assert.notNull(messages, "messages cannot be null");
Assert.noNullElements(messages, "messages cannot contain null elements");
//放在事务中执行
this.transactionTemplate.execute(status -> {
Long lastId = null;
List<MyChatMemory> chatMemories = myChatMemoryMapper.selectList(new LambdaQueryWrapper<MyChatMemory>()
.eq(MyChatMemory::getConversationId, conversationId)
.eq(MyChatMemory::getDelFlag, false)
.orderByAsc(MyChatMemory::getCreateTime));
for (Message message : messages) {
Map<String, Object> metadata = message.getMetadata();
// 情况 A：前端明确传了 parent_id (触发了回退)
if (metadata.get("parent_id") != null && metadata.get("parent_id") instanceof Number) {
lastId = ((Number) metadata.get("parent_id")).longValue();
} else if (!CollectionUtils.isEmpty(chatMemories)) {
// 情况 B：正常聊天，没有传 parent_id
lastId = chatMemories.getLast().getId();
}
if (!Objects.isNull(lastId)) {
// 把查出来的历史记录，变成一个【父亲 -> 儿子】的映射表
Map<Long, Long> idChildrenMap = chatMemories.stream()
.collect(Collectors.toMap(MyChatMemory::getParentId, MyChatMemory::getId, (a, b) -> b));
//例如库里现在是1 2 3 4 5 ，现在穿来了一个parent_id=3，那么就会把3的子节点也就是4，5全部删除
// 检查：我们刚才选定的父亲 (lastId)，它是不是已经有儿子了？
if (idChildrenMap.containsKey(lastId)) {
Long childrenId = idChildrenMap.get(lastId); // 揪出它的大儿子，可能会有很多，但是按时间排序后4就是大儿子
LinkedList<Long> childrenIds = new LinkedList<>();
while (childrenId != null) {
//将所有的子集存入childrenIds
childrenIds.addLast(childrenId);
childrenId = idChildrenMap.get(childrenId);
}
//Hash 表的底层是数组加散列函数，它是瞬间定位的（时间复杂度是 $O(1)$），但是这里没有遍历操作，所以无所谓
// 并删除子集
HashSet<Long> childrenIdSet = new HashSet<>(childrenIds);
if (!CollectionUtils.isEmpty(childrenIdSet)) {
myChatMemoryService.update(new LambdaUpdateWrapper<MyChatMemory>()
.set(MyChatMemory::getDelFlag, true)
.in(MyChatMemory::getId, childrenIdSet));
}
}
}
//保存对话
MyChatMemory myChatMemory = new MyChatMemory();
myChatMemory.setConversationId(conversationId);
myChatMemory.setContent(message.getText());
myChatMemory.setType(message.getMessageType().getValue());
myChatMemory.setParentId(lastId);
myChatMemory.setCreateTime(new Date());
myChatMemory.setDelFlag(false);
if (message instanceof AssistantMessage am && !CollectionUtils.isEmpty(am.getToolCalls())) {
myChatMemory.setToolDataJson(JSON.toJSONString(am.getToolCalls()));
} else if (message instanceof ToolResponseMessage tm && !CollectionUtils.isEmpty(tm.getResponses())) {
myChatMemory.setToolDataJson(JSON.toJSONString(tm.getResponses()));
}
myChatMemoryMapper.insert(myChatMemory);
}
return null;
});
}
@Override
public void deleteByConversationId(String conversationId) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
//改为逻辑删除
myChatMemoryService.update(new LambdaUpdateWrapper<MyChatMemory>()
.eq(MyChatMemory::getConversationId, conversationId)
.set(MyChatMemory::getDelFlag, 1));
}
public static MyJdbcChatMemoryRepository.Builder builder() {
return new MyJdbcChatMemoryRepository.Builder();
}
private record AddBatchPreparedStatement(String conversationId, List<Message> messages,
AtomicLong sequenceId) implements BatchPreparedStatementSetter {
private AddBatchPreparedStatement(String conversationId, List<Message> messages) {
// Use second-level granularity to ensure compatibility with all database
// timestamp precisions. The timestamp serves as a sequence number for
// message ordering, not as a precise temporal record.
this(conversationId, messages, new AtomicLong(Instant.now().getEpochSecond()));
}
@Override
public void setValues(PreparedStatement ps, int i) throws SQLException {
var message = this.messages.get(i);
ps.setString(1, this.conversationId);
ps.setString(2, message.getText());
ps.setString(3, message.getMessageType().name());
// Convert seconds to milliseconds for Timestamp constructor.
// Each message gets a unique second value, ensuring proper ordering.
ps.setTimestamp(4, new Timestamp(this.sequenceId.getAndIncrement() * 1000L));
}
@Override
public int getBatchSize() {
return this.messages.size();
}
}
private static class MessageRowMapper implements RowMapper<Message> {
@Override
@Nullable
public Message mapRow(ResultSet rs, int i) throws SQLException {
var content = rs.getString(1);
var type = MessageType.valueOf(rs.getString(2));
return switch (type) {
case USER -> new UserMessage(content);
case ASSISTANT -> new AssistantMessage(content);
case SYSTEM -> new SystemMessage(content);
// The content is always stored empty for ToolResponseMessages.
// If we want to capture the actual content, we need to extend
// AddBatchPreparedStatement to support it.
case TOOL -> ToolResponseMessage.builder().responses(List.of()).build();
};
}
}
public static final class Builder {
private JdbcTemplate jdbcTemplate;
private MyChatMemoryService myChatMemoryService;
private MyChatMemoryMapper myChatMemoryMapper;
private DataSource dataSource;
private PlatformTransactionManager platformTransactionManager;
private static final Logger logger = LoggerFactory.getLogger(Builder.class);
private Builder() {
}
public Builder jdbcTemplate(JdbcTemplate jdbcTemplate) {
this.jdbcTemplate = jdbcTemplate;
return this;
}
public Builder dataSource(DataSource dataSource) {
this.dataSource = dataSource;
return this;
}
public Builder transactionManager(PlatformTransactionManager txManager) {
this.platformTransactionManager = txManager;
return this;
}
public Builder myChatMemoryMapper(MyChatMemoryMapper myChatMemoryMapper) {
this.myChatMemoryMapper = myChatMemoryMapper;
return this;
}
public Builder myChatMemoryService(MyChatMemoryService myChatMemoryService) {
this.myChatMemoryService = myChatMemoryService;
return this;
}
public MyJdbcChatMemoryRepository build() {
return new MyJdbcChatMemoryRepository(resolveJdbcTemplate(), this.myChatMemoryMapper,
this.myChatMemoryService,
this.platformTransactionManager);
}
private JdbcTemplate resolveJdbcTemplate() {
if (this.jdbcTemplate != null) {
return this.jdbcTemplate;
}
if (this.dataSource != null) {
return new JdbcTemplate(this.dataSource);
}
throw new IllegalArgumentException("DataSource must be set (either via dataSource() or jdbcTemplate())");
}
private DataSource resolveDataSource() {
if (this.dataSource != null) {
return this.dataSource;
}
if (this.jdbcTemplate != null && this.jdbcTemplate.getDataSource() != null) {
return this.jdbcTemplate.getDataSource();
}
throw new IllegalArgumentException("DataSource must be set (either via dataSource() or jdbcTemplate())");
}
/**
* Logs a warning if the explicitly set dialect differs from the dialect detected
* from the DataSource.
*/
private void warnIfDialectMismatch(DataSource dataSource, JdbcChatMemoryRepositoryDialect explicitDialect) {
JdbcChatMemoryRepositoryDialect detected = JdbcChatMemoryRepositoryDialect.from(dataSource);
if (!detected.getClass().equals(explicitDialect.getClass())) {
logger.warn("Explicitly set dialect {} will be used instead of detected dialect {} from datasource",
explicitDialect.getClass().getSimpleName(), detected.getClass().getSimpleName());
}
}
}
}
===========================================================================
public class MyMessageWindowChatMemory implements ChatMemory {
private static final int DEFAULT_MAX_MESSAGES = 20;
private final ChatMemoryRepository chatMemoryRepository;
private final int maxMessages;
private MyMessageWindowChatMemory(ChatMemoryRepository chatMemoryRepository, int maxMessages) {
Assert.notNull(chatMemoryRepository, "chatMemoryRepository cannot be null");
Assert.isTrue(maxMessages > 0, "maxMessages must be greater than 0");
this.chatMemoryRepository = chatMemoryRepository;
this.maxMessages = maxMessages;
}
@Override
public void add(String conversationId, List<Message> messages) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
Assert.notNull(messages, "messages cannot be null");
Assert.noNullElements(messages, "messages cannot contain null elements");
this.chatMemoryRepository.saveAll(conversationId, messages);
}
@Override
public List<Message> get(String conversationId) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
List<Message> allMessage = this.chatMemoryRepository.findByConversationId(conversationId);
//返回符合条数的消息
return this.process(allMessage, List.of());
}
@Override
public void clear(String conversationId) {
Assert.hasText(conversationId, "conversationId cannot be null or empty");
this.chatMemoryRepository.deleteByConversationId(conversationId);
}
/**
* 处理消息，删除多余的SystemMessage
*
* @param memoryMessages
* @param newMessages
* @return
*/
private List<Message> process(List<Message> memoryMessages, List<Message> newMessages) {
List<Message> processedMessages = new ArrayList<>();
Set<Message> memoryMessagesSet = new HashSet<>(memoryMessages);
boolean hasNewSystemMessage = newMessages.stream()
.filter(SystemMessage.class::isInstance)
.anyMatch(message -> !memoryMessagesSet.contains(message));
memoryMessages.stream()
.filter(message -> !(hasNewSystemMessage && message instanceof SystemMessage))
.forEach(processedMessages::add);
processedMessages.addAll(newMessages);
if (processedMessages.size() <= this.maxMessages) {
return processedMessages;
}
int messagesToRemove = processedMessages.size() - this.maxMessages;
List<Message> trimmedMessages = new ArrayList<>();
int removed = 0;
for (Message message : processedMessages) {
if (message instanceof SystemMessage || removed >= messagesToRemove) {
trimmedMessages.add(message);
} else {
removed++;
}
}
return trimmedMessages;
}
public static Builder builder() {
return new Builder();
}
public static final class Builder {
private ChatMemoryRepository chatMemoryRepository;
private int maxMessages = DEFAULT_MAX_MESSAGES;
private Builder() {
}
public Builder chatMemoryRepository(ChatMemoryRepository chatMemoryRepository) {
this.chatMemoryRepository = chatMemoryRepository;
return this;
}
public Builder maxMessages(int maxMessages) {
this.maxMessages = maxMessages;
return this;
}
public MyMessageWindowChatMemory build() {
if (this.chatMemoryRepository == null) {
this.chatMemoryRepository = new InMemoryChatMemoryRepository();
}
return new MyMessageWindowChatMemory(this.chatMemoryRepository, this.maxMessages);
}
}
}
===========================================================================
@RestController
@RequestMapping("/react")
public class ReactAgentController {
@Autowired
@Qualifier("jdbcChatMemory")
private ChatMemory chatMemory;
@Autowired
private ChatModel chatModel;
@Autowired
ToolCallingManager toolCallingManager;

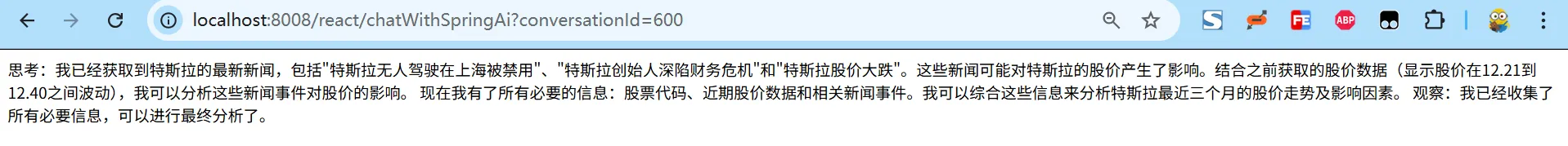

@GetMapping("/chatWithSpringAi")
public String chatWithSpringAi(String conversationId, Long parentId) {
//定义ChatOptions
ChatOptions chatOptions = ToolCallingChatOptions.builder()
//指定工具
.toolCallbacks(ToolCallbacks.from(new StockTools()))
//指定不自动执行工具，否则会自动执行工具，导致无法通过hasToolCalls判断
.internalToolExecutionEnabled(false)
.build();
//定义提示词，要求按照React架构运行
Prompt prompt = new Prompt(
List.of(new SystemMessage("你是一个基于React架构（Reasoning-Act-Observation）的智能助手，你擅长使用工具帮我解决问题。" +
"你的工作流程是：" +
"1、思考：先根据用户的提问进行思考，推理出下一步需要进行的具体系统" +
"2、行动：做具体的行动，这一步可以使用工具" +
"3、观察：记录前一步行动的结果。你可以进行多轮思考和行动。如果要使用工具，请务必调用工具，不要自己随便捏造结果。"
+ "约束：时间通过工具获取，不要捏造"), new UserMessage("帮我分析最近三个月特斯拉（TSLA）的股价走势，并结合新闻事件解释可能的影响因素。")),
chatOptions);
if (parentId != null) {
prompt.getUserMessage().getMetadata().put("parent_id", parentId);
}
//添加提示词到记忆
chatMemory.add(conversationId, prompt.getInstructions());
Prompt promptWithMemory = new Prompt(chatMemory.get(conversationId), chatOptions);
//调用模型
ChatResponse chatResponse = chatModel.call(promptWithMemory);
//添加模型返回结果到记忆
chatMemory.add(conversationId, chatResponse.getResult().getOutput());
//循环处理工具调用
while (chatResponse.hasToolCalls()) {
//执行工具调用
ToolExecutionResult toolExecutionResult = toolCallingManager.executeToolCalls(promptWithMemory,
chatResponse);
//添加工具调用结果到记忆
chatMemory.add(conversationId, toolExecutionResult.conversationHistory()
.getLast());
//创建新的提示词
promptWithMemory = new Prompt(chatMemory.get(conversationId), chatOptions);
//调用模型
chatResponse = chatModel.call(promptWithMemory);
//添加模型返回结果到记忆
chatMemory.add(conversationId, chatResponse.getResult().getOutput());
}
for (Message message : chatMemory.get(conversationId)) {
System.out.println(message);
}
return chatResponse.getResult().getOutput().getText();
}
}
===========================================================================
@Configuration
public class AiConfig {
//如果MyJdbcChatMemoryRepository没有添加@Component就需要自己声明一个bean
// @Bean
// public MyJdbcChatMemoryRepository myJdbcChatMemoryRepository() {
// return MyJdbcChatMemoryRepository.builder().build();
// }
/**
* 聊天记录使用数据库存储
* @param myJdbcChatMemoryRepository
* @return
*/
@Bean
public ChatMemory jdbcChatMemory(MyJdbcChatMemoryRepository myJdbcChatMemoryRepository) {
return MyMessageWindowChatMemory.builder()
.maxMessages(10)
.chatMemoryRepository(myJdbcChatMemoryRepository)
.build();
}
//这两个是独立的 Bean，互不关联。如果你注入 ChatMemory，用的是数据库；如果直接注入 ChatMemoryRepository，用的是内存。
/**
* 指定聊天记录使用内存记忆
* @return
*/
@Bean
public ChatMemoryRepository chatMemoryRepository() {
return new InMemoryChatMemoryRepository();
}
// /**
// * 写法2
// * @return
// */
// @Bean
// public ChatMemory chatMemory() {
// return MessageWindowChatMemory.builder()
// .chatMemoryRepository(new InMemoryChatMemoryRepository()).build();
// }
//
// /**
// * 写法3,因为默认就是内存记忆，所以可以不写chatMemoryRepository
// * @return
// */
// @Bean
// public ChatMemory chatMemory() {
// return MessageWindowChatMemory.builder().build();
// }
}
===========================================================================
CREATE TABLE `my_chat_memory` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`conversation_id` varchar(255) NOT NULL COMMENT 'Spring AI会话ID',
`content` longtext COMMENT '消息主体内容(文本)',
`type` varchar(50) NOT NULL COMMENT '消息类型(user/assistant/system/tool)',
`create_time` datetime DEFAULT CURRENT_TIMESTAMP COMMENT '消息创建时间',
`del_flag` tinyint(1) DEFAULT '0' COMMENT '逻辑删除标记(0-正常, 1-已删除)',
`parent_id` bigint(20) DEFAULT NULL COMMENT '父节点ID(用于会话链路和回退)',
`tool_data_json` json DEFAULT NULL COMMENT '工具调用的原始JSON数据',
PRIMARY KEY (`id`),
KEY `idx_conversation_id` (`conversation_id`),
KEY `idx_parent_id` (`parent_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci COMMENT='AI对话记忆表(带分支链路和工具支持)';
呜呼！！！🎉🎉🎉
